Size：186MM（L)×36MM(W)×68MM（H）
Power: En3 Camaction
Door Weight:40-85kgs
Door Width:≤950MM
Explore our 1000 Series Door Closers, engineered for reliable performance across various applications. This series features three models:
Door Closer 1133BW (20-85KG, up to 1050MM wide), Door Closer 1143AWH (40-65KG, 950MM wide), and Door Closer 112-5CW (40-120KG, 900-1200MM wide).br/>
Each model offers adjustable power settings and a compact design, making them ideal for both residential and commercial use.
|

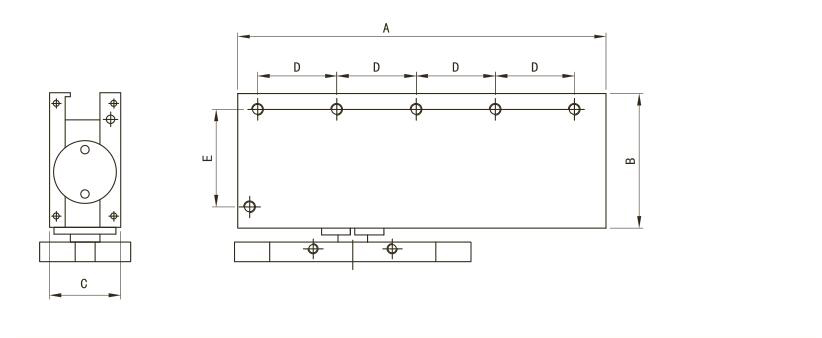

Main parameter |
|||||||||
|
Item |
Overall dimension（mm） |
Installation dimension（mm） |
Applicable door weight(Kg) |
Applicable door width(mm) |
Function
|
Please install according to the instruction |
|||
|
A |
B |
C |
D |
E |
|||||
|
D1103AW |
186 |
68 |
36 |
40 |
49.3 |
45~65 |
≤950 |
Latching/closing adjustable Non-handed install |
Use for glass doors |
