Description
Product Overview

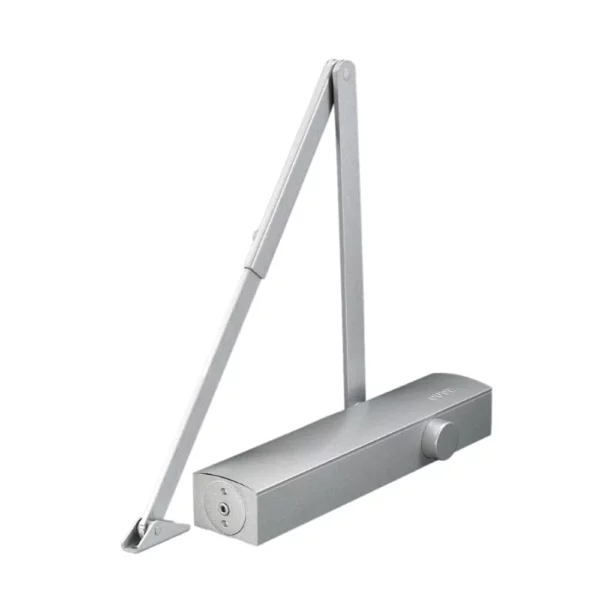

The 813-6CW is a heavy-duty, surface-mounted door closer from the 8000 Series, engineered for doors requiring advanced control and durability. Designed for interior or exterior doors weighing 45–150 kg and widths up to 1500 mm, it combines robust construction with precision functionality for commercial and industrial applications.
Key Features
✅ Optimized for Medium to Heavy-Duty Use
- Door Weight Capacity: 45–150 kg
- Max Door Width: ≤1500 mm
- Power Grade: EN3–EN6 (adjustable strength for controlled closing)
- Functionality: Backcheck (protects walls) + Delayed action (adjustable closing speed).
✅ Space-Efficient Design
- Compact Dimensions: 287 mm (L) × 43 mm (H) × 60 mm (W)
- Footprint: 44 mm × 135 mm × 25 mm
- Rail guide system for seamless installation and low-profile aesthetics.
✅ Durable & Customizable
- Body Material: Corrosion-resistant aluminum extrusion.
- Finish Options: Pantone-matched paint colors, SSS/SNP arm, PA bracket, and cover.
Technical Specifications
| Parameter | Detail |
| Dimensions | 287 × 60 × 43 mm (L×W×H) |
| Footprint | 44 × 135 × 25 mm |
| Door Weight | 45–150 kg |
| Door Width | ≤1500 mm |
| Certifications | EN 1154, CE, ISO 9001* |
| Warranty | 5-year limited warranty |
Why Choose OUDE?
✔️ Trusted Manufacturer – Over 20 years of expertise in commercial-grade door hardware.
✔️ Global Compliance – Meets EN 1154 and ISO 9001 standards for safety and quality.
✔️ Tailored Solutions – Customize finishes and components to match architectural requirements.
813-6CW
Size：287MM（L）×43MM（H）×60MM(W)
Footprint:44MM×135MM×25MM
Power:En3#~En6#
Door Weight:45-150KG
Door Width:≤1500MM
Function:Backcheck/Delay action
Body Material:Alluminum extruded
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

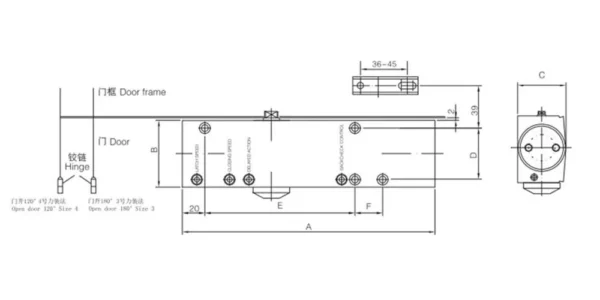

| Main parameter | ||||||||||
| Item | Overall dimension （mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
| A | B | C | D | E | F | |||||
| 812-5BW | 226 | 60 | 43.5 | 44 | 135 | 25 | 25~120 | ≤1200 | Latching/closing adjustable Backcheck adjustable | Power adjustable by |
| 812-5CW | 226 | 60 | 43.5 | 44 | 135 | 25 | 25~120 | ≤1200 | Latching/closing adjustable Backcheck Delay action | |
| 813-6CW | 287 | 60 | 43.5 | 44 | 135 | 25 | 60~150 | ≤1500 | Latching/closing adjustableBackcheck Delay action adjustable | |
