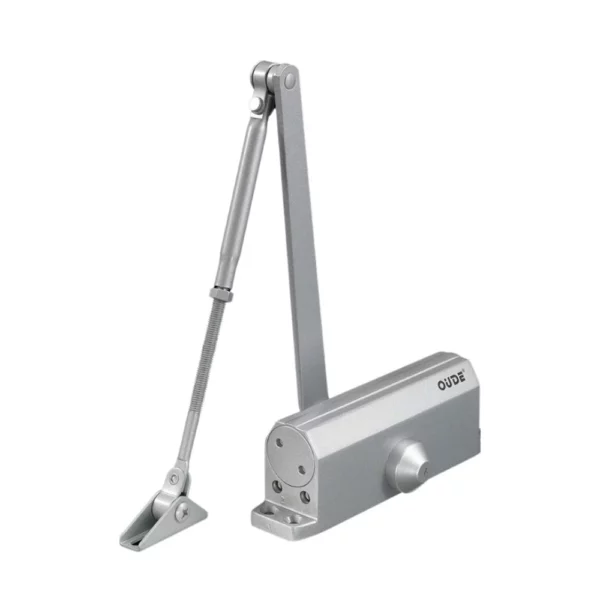

Door Closer 6033AW

Size：186MM（L）×68MM（H）×44.5MM(W)
Footprint:168MM×19MM
Power:En3#
Door Weight:40-65KG
Door Width:≤950MM

Available Colors:

Description

6033AW
Size：186MM（L）×68MM（H）×44.5MM(W)
Footprint:168MM×19MM
Power:En3#
Door Weight:40-65KG
Door Width:≤950MM
Hold open optional

Main parameter
Item	Overall dimension（mm）			Installation dimension（mm）		Applicable door weight(Kg)	Applicable door width(mm)	Function	Please install according to the instruction
Item	A	B	C	D	E	Applicable door weight(Kg)	Applicable door width(mm)	Function	Please install according to the instruction
6023AW	168	41.5	63	19	152	40～65	≤950	Two-stage speed regulation
6023AD	168	41.5	63	19	152	40～65	≤950	Two-stage speed regulation/door stop function
6033AW	186	44.5	68	19	168	40～65	≤950	Two-stage speed regulation
6033AD	186	44.5	68	19	168	40～65	≤950	Two-stage speed regulation/door stop function
6034AW	186	44.5	68	19	168	60～85	≤1050	Two-stage speed regulation
6034AD	186	44.5	68	19	168	60～85	≤1050	Two-stage speed regulation/door stop function
N6033AW	186	41.5	62.5	19	168	40～65	≤950
