Description

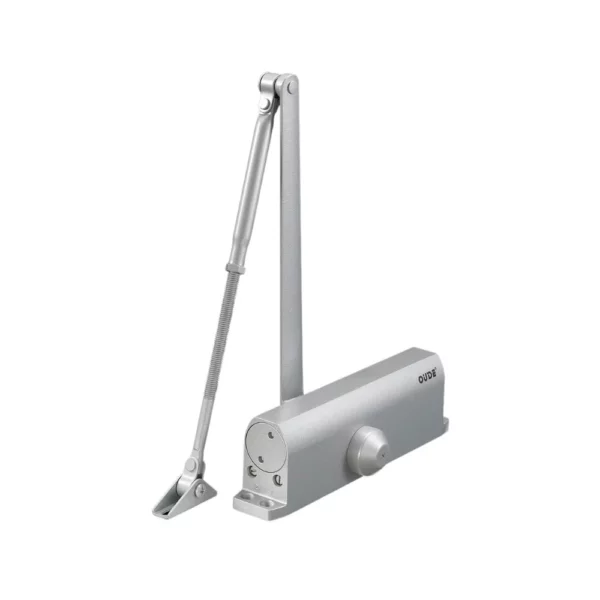

5055AW
Size：248MM（L）×72MM（H）×44.5MM(W)
Footprint:230MM×19MM
Power:En5/6
Door Weight:80KG~120KG 100~150kg
Door Width:≤1200MM ≤1500MM
Backcheck optional
Hold open arm optional
Finish options: all panton color paiting finish

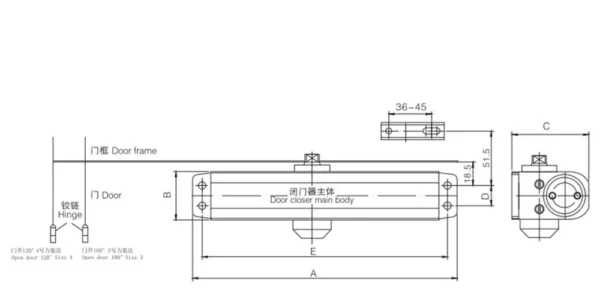

| Main parameter | |||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | |||
| A | B | C | D | E | |||||
| 5055AW | 248 | 44.5 | 72 | 19 | 230 | 80~120 | ≤1200 | Dual-stage speed regulation | Can have torque adjustment function |
| 5055BW | 248 | 44.5 | 72 | 19 | 230 | 80~120 | ≤1200 | Dual-stage speed regulation/buffer function | |
| 5056AW | 248 | 44.5 | 72 | 19 | 230 | 100~150 | ≤1500 | Dual-stage speed regulation | Can have torque adjustment function |
| 5056BW | 248 | 44.5 | 72 | 19 | 230 | 100~150 | ≤1500 | Dual-stage speed regulation/buffer function | |
