Description
Key Feature
✔️ Robust Construction: Engineered to handle doors weighing 20-85KG and widths up to 1050mm.
✔️ Versatile Power Options: EN2/3/4 selectable by position for flexible installation.
✔️ Compact Design: Minimal footprint (50×50×43mm) for discreet integration.
✔️ Adjustable Backcheck: Fine-tune closing speed and resistance effortlessly.
✔️ Premium Finishes: Customizable in all Pantone® colors; optional SSS/SNP arm with PA bracket and cover.
Technical Specifications
- Dimensions: 207mm (L) × 38.5mm (H) × 60mm (W)
- Door Compatibility:
- Max Door Weight: 85KG
- Max Door Width: ≤1050mm
- Certifications: CE, ISO, and industry-specific standards (request full details).
- Warranty: Industry-leading guarantee (inquire for terms).
Why Choose the 1133BW?
Ideal for commercial and industrial applications, this closer combines durability with sleek aesthetics. Its compact profile ensures seamless installation while maintaining powerful performance for high-traffic environments.
Customization Options
- Finish: Choose from any Pantone® color or opt for stainless steel (SSS) or SNP arm variants.
- Technical Support: Tailored solutions for unique architectural requirements.

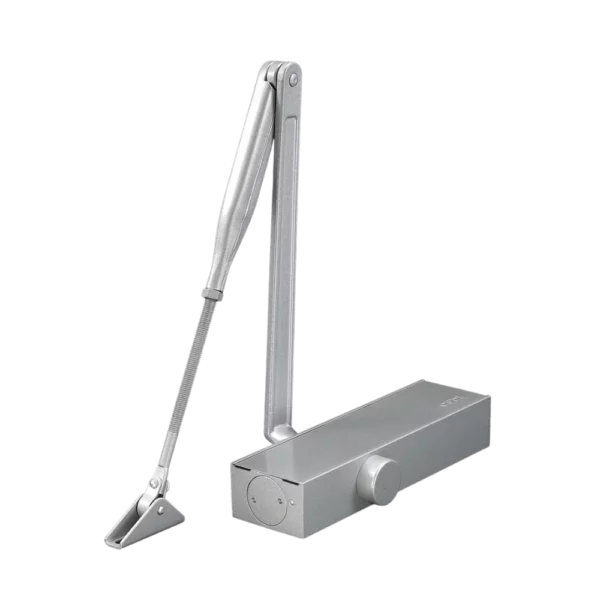

1133BW
Size：207MM（L）×38.5MM（H）×60MM(W)
Footprint:50MM×50MM×43MM
Power:En2/3/4 selectable by position
Backcheck adj
Door Weight:20-85KG
Door Width:≤1050MM
Finish options: all panton color paiting finish;SSS/SNP arm PA bracket and cover

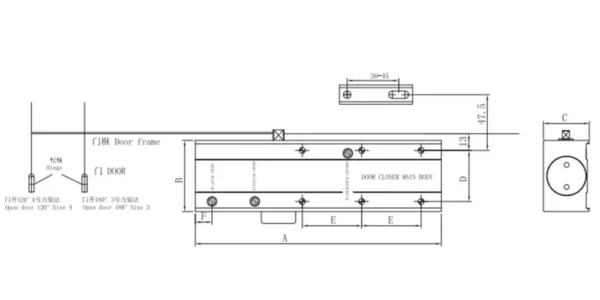

Main parameter | ||||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the instruction | ||||
| A | B | C | D | E | F | |||||
| 1133AW | 207 | 60 | 38.5 | 43 | 50 | 14 | 40~65 | ≤950 | Latching/closing adjustable | Sliding guide arm Hold open optional |
| 1134AW | 207 | 60 | 38.5 | 43 | 50 | 14 | 60~85 | ≤1050 | Latching/closing adjustable | |
| 1133BW | 207 | 60 | 38.5 | 43 | 50 | 14 | 40~65 | ≤950 | Latching/closing adjustable Backcheck adjustable | |
| 1134BW | 207 | 60 | 38.5 | 43 | 50 | 14 | 60~85 | ≤1050 | Latching/closing adjustable Backcheck adjustable | |
