Description
Product Overview

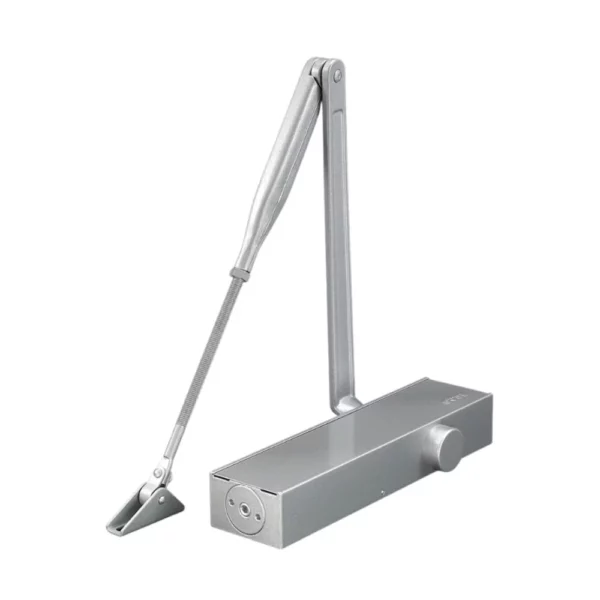

The 112-5CW is a medium-duty surface-mounted door closer engineered for versatile commercial and residential applications. Designed for doors weighing 45–120 kg with widths up to 1200 mm, it balances robust performance with adaptable functionality for interior or exterior use.
Key Features
✅ Medium-Duty Versatility
- Door Weight Capacity: 45–120 kg
- Max Door Width: 900–1200 mm
- Power Adjustment: Spring-driven EN2-5 grade (EN 1154 certified for precise speed control).
✅ Low-Profile & Space-Efficient
- Compact Dimensions: 236 mm (L) × 60 mm (W) × 38.5 mm (H)
- Minimal Footprint: 50 × 50 × 43 mm
- Rail-guided mechanism for seamless installation and sleek aesthetics.
✅ Advanced Functionality
- Optional Backcheck (to prevent slamming) and Delayed Action (for accessibility compliance).
- Finish Customization: Pantone-matched paint, SSS/SNP arm, PA bracket, and corrosion-resistant cover.
Technical Specifications
| Parameter | Detail |
| Dimensions | 236 × 60 × 38.5 mm (L×W×H) |
| Footprint | 50 × 50 × 43 mm |
| Door Weight | 45–120 kg |
| Door Width | 900–1200 mm |
| Power Grade | EN2-5 (spring-adjusted) |
| Certifications | EN 1154, CE, ISO 9001 |
| Warranty | 5-year limited warranty |
Why Choose OUDE?
✔️ Engineered for Durability – Corrosion-resistant materials and rigorous quality testing.
✔️ Global Standards Compliance – Meets EN 1154 and ISO 9001 for safety and reliability.
✔️ Tailored Solutions – Customizable finishes and functional add-ons to suit diverse project requirements.

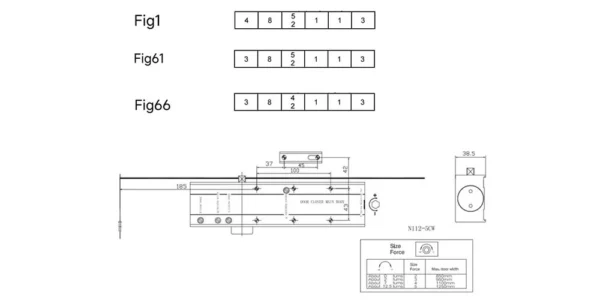

Main parameter | |||||||||
| Item | Overall dimension（mm） | Installation dimension（mm） | Applicable door weight(Kg) | Applicable door width(mm) | Function | Please install according to the | |||
| A | B | C | D | E | |||||
| 112-5CW | 236 | 60 | 38.5 | 43 | 50 | 25~120 | ≤1200 | Latching/closing adjustable Backcheck Delay action adjustable | Power adjustable by spring (BC,DA) |
