Light Duty Door Closer 5023AW

  • Size: 180MM（L）×63MM（H）×41.5MM(W)
  • Footprint: 165MM×19MM
  • Power: En2#/En3#
  • Door Weight: 25-45KG/40-65KG
  • Door Width: ≤900MM/≤950MM
  • Hold open optional
  • Certifire fig1,fig6,fig61
  • EN1634 tested for timber door&steel door
Size：180MM（L）×63MM（H）×41.5MM(W)
Footprint:165MM×19MM
Power:En2#/En3#
Door Weight:25-45KG/40-65KG
Door Width:≤900MM/≤950MM
Hold open optional
Certifire fig1,fig6,fig61
EN1634 tested for timber door&steel door

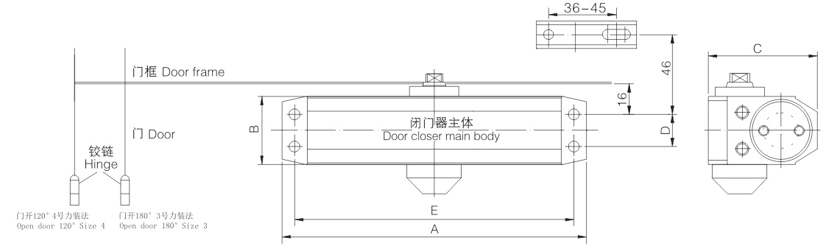

 Main parameter

Item

Overall dimension（mm）
Installation dimension（mm）
Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

5022AW

180

40

63

19

165

25~45

≤900

Latching/closing adjustable


5022AD

180

40

63

19

165

25~45

≤900

Latching/closing adjustable

Hold open

5023AW

180

40

63

19

165

40~65

≤950

Latching/closing adjustable

5023AD

180

40

63

19

165

40~65

≤950

Latching/closing adjustable

Hold open
