Products Details

Commercial door closer 802-5CW

  • Size: 227MM(L)×43.5MM(H)×60MM(W)
  • Footprint: 44MM×135MM×25MM
  • Power: En2#~En5#
  • Door Weight: 25-100KG Door Width:900MM~1200MM
  • Door Width: Backcheck/Delay action optional
  • Meet CE require
Size:227MM(L)×43.5MM(H)×60MM(W)
Footprint:44MM×135MM×25MM
Power:En2#~En5#
Door Weight:25-100KG Door Width:900MM~1200MM
Function:Backcheck/Delay action optional
Meet CE require

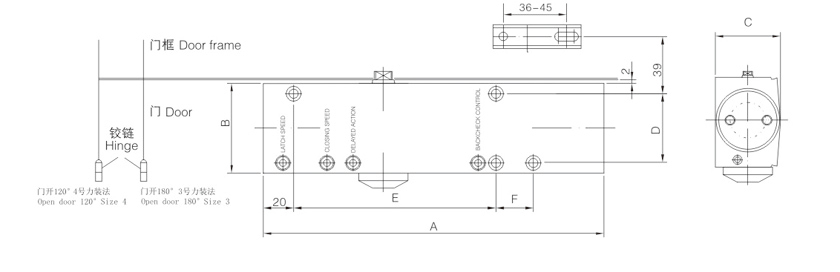

Main parameter

Item

Overall dimension(mm)
Installation dimension

(mm)

Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

F

802-5BW

227

60

43.5

44

135

25

25~120

≤1200

Latching/closing adjustable

Backcheck adjustable


Power adjustable by spring

802-5CW

227

60

43.5

44

135

25

25~120

≤1200

Latching/closing adjustable

Backcheck Delay action adjustable
