Size：207MM（L）×38.5MM（H）×60MM(W)
Footprint:50MM×50MM×43MM
Power:En3# En4# optional
Door Weight:40-65KG 60-85KG
Door Width:≤950MM ≤1050MM
Meet CE require
Explore our 1000 Series Door Closers, engineered for reliable performance across various applications. This series features three models:
Door Closer 1133BW (20-85KG, up to 1050MM wide), Door Closer 1143AWH (40-65KG, 950MM wide), and Door Closer 112-5CW (40-120KG, 900-1200MM wide).br/>
Each model offers adjustable power settings and a compact design, making them ideal for both residential and commercial use.
|

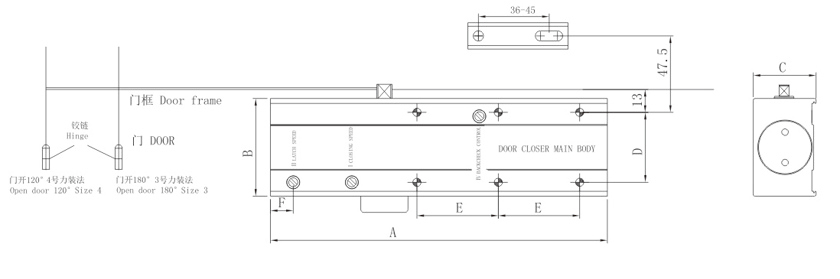

Main parameter |
||||||||||
|
Item |
Overall dimension（mm）
|
Installation dimension（mm）
|
Applicable door
weight(Kg) |
Applicable door
width(mm) |
Function
|
Please install according to the instruction |
||||
|
A |
B |
C |
D |
E |
F |
|||||
|
1133AW |
207 |
60 |
38.5 |
43 |
50 |
14 |
40~65 |
≤950 |
Latching/closing adjustable
|
Sliding guide arm Hold open optional |
|
1134AW |
207 |
60 |
38.5 |
43 |
50 |
14 |
60~85 |
≤1050 |
Latching/closing adjustable
|
|
|
1133BW |
207 |
60 |
38.5 |
43 |
50 |
14 |
40~65 |
≤950 |
Latching/closing adjustable
Backcheck adjustable |
|
|
1134BW |
207 |
60 |
38.5 |
43 |
50 |
14 |
60~85 |
≤1050 |
Latching/closing adjustable
Backcheck adjustable |
|
