Products Details

CE series door closer D3023BW

  • Size: 220MM(L)×52MM(H)×45MM(W)
  • Footprint: 202MM×19MM
  • Power: En2#~En4# (Install size Changing)
  • Door Weight: 25-85KG
  • Door Width: 900MM~1050MM
  • Backcheck optional
  • Sliding arm optional
  • Meet CE require
Size:220MM(L)×52MM(H)×45MM(W)
Footprint:202MM×19MM
Power:En2#~En4# (Install size Changing)
Door Weight:25-85KG
Door Width:900MM~1050MM
Backcheck optional
Sliding arm optional
Meet CE require

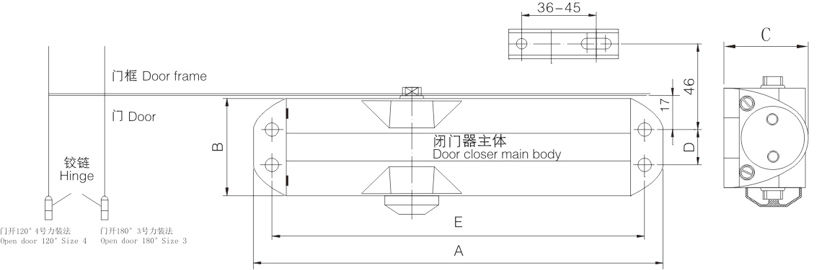

 Main parameter

Item

Overall dimension(mm)
Installation dimension(mm)
Applicable door

weight(Kg)

Applicable door

width(mm)

Function

Please install according

to the instruction

A

B

C

D

E

3022AW

220

52

45

19

202

25~45

≤900

Latching/closing adjustable


3023AW

220

52

45

19

202

40~65

≤950

Latching/closing adjustable

3023AD

220

52

45

19

202

40~65

≤950

Latching/closing adjustable

Hold open

3023BW

220

52

45

19

202

40~65

≤950

Closing/latching speed adjustable

Backcheck adjustable
