Size：236MM（L）×38.5MM（H）×60MM(W)
Footprint:50MM×50MM×43MM
Power:En2#~En5#
Door Weight:45KG~120KG
Door Width:900MM~1200MM
Function:Backcheck/Delay action
Sliding arm optional
Meet CE require
Explore our 1000 Series Door Closers, engineered for reliable performance across various applications. This series features three models:
Door Closer 1133BW (20-85KG, up to 1050MM wide), Door Closer 1143AWH (40-65KG, 950MM wide), and Door Closer 112-5CW (40-120KG, 900-1200MM wide).br/>
Each model offers adjustable power settings and a compact design, making them ideal for both residential and commercial use.
|

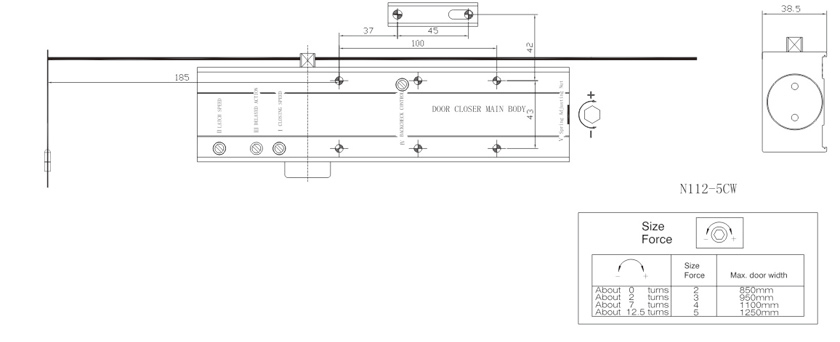

Main parameter |
|||||||||
|
Item |
Overall dimension（mm） |
Installation dimension（mm） |
Applicable door weight(Kg) |
Applicable door width(mm) |
Function |
Please install according to the instruction |
|||
|
A |
B |
C |
D |
E |
|||||
|
112-5CW |
236 |
60 |
38.5 |
43 |
50 |
25~120 |
≤1200 |
Latching/closing adjustable Backcheck Delay action adjustable |
Power adjustable by spring (BC,DA) |
